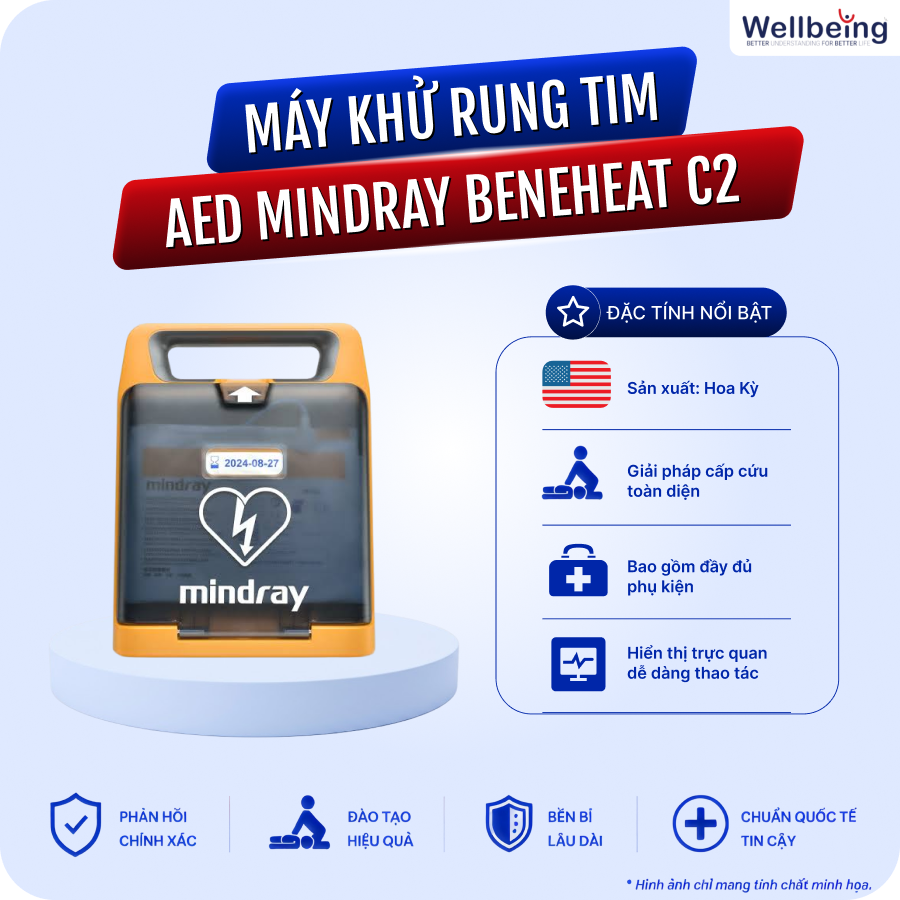

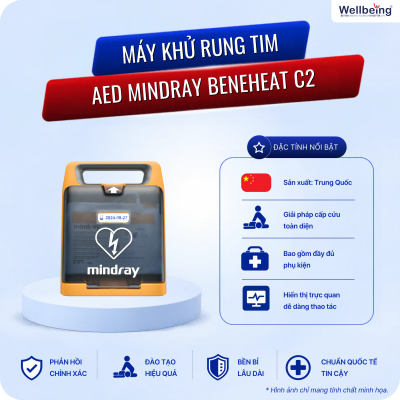

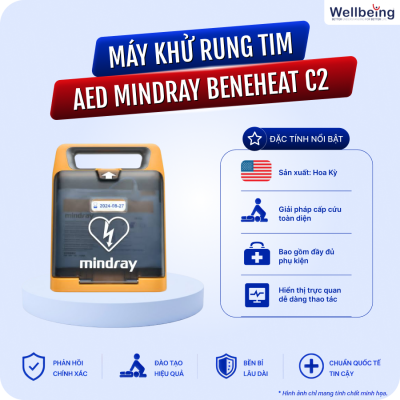

Mindray BeneHeart C2 AED

The Mindray BeneHeart C2 AED is a modern automated external defibrillator designed for both healthcare professionals and users without formal emergency medical training. With ResQNavi™ intelligent guidance technology and the ability to analyze heart rhythms and deliver a shock in under 8 seconds, the BeneHeart C2 provides effective support in sudden cardiac arrest situations and helps improve the victim’s chance of survival.

The BeneHeart C2 is equipped with a 7-inch TFT color display with a resolution of 800 × 480 pixels, providing clear visual guidance for emergency response steps and CPR. The device uses QShock™ technology, reducing ECG analysis time to under 5 seconds while pre-charging simultaneously during the analysis process. According to Mindray, the device can be ready to deliver a 200 J shock in under 8 seconds from power-on, using a new battery under the specified test conditions.

The device uses a Biphasic Truncated Exponential (BTE) waveform with automatic compensation of voltage and duration based on patient impedance. It supports an energy range of 100–360 J for adults and 10–100 J for children. Users can quickly switch to pediatric mode using the Adult/Child Mode switch on the device.

The BeneHeart C2 is also designed to operate in a wide range of environments, with an IP55 rating for dust and water resistance, drop resistance from a height of 1.5 m, and an operating temperature range of -5°C to 50°C. Mindray states that the battery and electrode pads used in the C Series have a long service life, helping reduce replacement frequency and support continued AED readiness.

Mindray BeneHeart C2 Technical Specifications (according to the manufacturer’s documentation)

Key advantages

1. 7-inch TFT color display with intuitive guidance

The BeneHeart C2 is equipped with a 7-inch color display with a resolution of 800 × 480 pixels, showing text and animated visuals together with voice prompts to help users follow each step of the emergency response process more easily.

2. ResQNavi™ technology provides step-by-step user guidance

ResQNavi™ provides appropriate guidance and encouragement based on the time the user takes to complete each step, supporting even first-time AED users during an emergency.

3. Shock-ready in under 8 seconds

Thanks to QShock™, ECG analysis time is reduced to under 5 seconds while the device charges simultaneously, allowing the BeneHeart C2 to be ready to deliver a 200 J shock in under 8 seconds under the manufacturer’s specified test conditions.

4. Defibrillation energy up to 360 J

The device uses a BTE waveform with an energy range of 100–360 J for adults and 10–100 J for children, while automatically compensating according to patient impedance.

5. Quick switching between adult and child modes

The device supports quick switching between adult and child modes without the need to replace the electrode pads, helping make emergency operation faster and simpler.

6. Visual CPR support

The device provides animated guidance, voice prompts, and a CPR metronome. When configured with a CPR Sensor, the C2 can also provide real-time CPR feedback.

7. High durability in a wide range of environments

The BeneHeart C2 is rated IP55, can withstand a 1.5 m drop, and meets multiple standards for vibration, impact, and transport, making it suitable for deployment in public locations and transport environments.

8. Long battery and electrode service life

Mindray states that the BeneHeart C2 uses durable consumables, with the battery and electrode pads offering a service life of up to approximately 5 years under the corresponding configuration and specified conditions, helping reduce ownership costs and replacement frequency.

9. Support for up to 3 languages

Depending on the configuration, the device can switch between up to 3 languages, making it suitable for hotels, airports, tourist destinations, and other environments with diverse users.

10. Optional remote management connectivity

The BeneHeart C2 can be equipped with Wi-Fi or 4G connectivity to connect to the AED-Alert™ 2.0 system, supporting remote device status management, fault alerts, and battery/electrode replacement reminders. Availability depends on the configuration and region.
