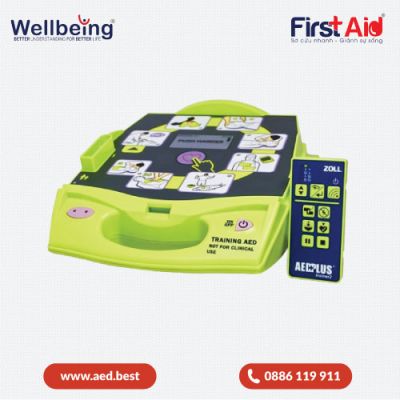

AED Zoll Plus Trainer

ZOLL AED Plus Trainer2 is an automated external defibrillator (AED) simulator designed to serve Cardiopulmonary Resuscitation (CPR) training and the practice of using AEDs in sudden cardiac arrest situations.

The device simulates the operating workflow of the ZOLL AED Plus AED, helping trainees become familiar with emergency response steps through voice prompts, visual signals, and pre-set training scenarios.

The ZOLL AED Plus Trainer2 is equipped with a wireless remote control, allowing instructors to select scenarios, adjust the simulation flow, and provide feedback on chest compression techniques during practice.

Note: The ZOLL AED Plus Trainer2 is intended for training purposes only; it does not deliver a defibrillation shock and must not be used for actual emergency rescue.

Key Features of the ZOLL AED Plus Trainer2

1. Simulation of AED Plus Operation Workflow

The ZOLL AED Plus Trainer2 recreates the essential steps in operating an AED, including:

• Turning on the device.

• Following voice prompts.

• Simulating the placement of electrode pads on the patient.

• Simulating the heart rhythm analysis process.

• Practicing responses to "shock advised" or "no shock advised" prompts.

• Practicing CPR according to guided instructions.

The device helps trainees become familiar with the sequence of AED operations in a controlled training environment.

2. Four Pre-Set Training Scenarios

The ZOLL AED Plus Trainer2 offers four simulated scenarios with different heart rhythm analysis outcomes:

• Scenario 1: Shock Advised – Shock Advised.

• Scenario 2: No Shock Advised – Shock Advised.

• Scenario 3: Shock Advised – No Shock Advised.

• Scenario 4: No Shock Advised – No Shock Advised.

In addition to the four pre-set scenarios, the device supports a manual control mode, allowing instructors to actively adjust the flow of the simulated emergency response.

3. Wireless Remote Control

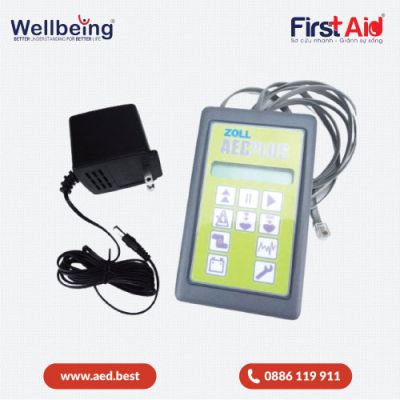

The ZOLL AED Plus Trainer2 utilizes a wireless controller to assist instructors in managing the training process. Through the controller, instructors can:

• Select training scenarios.

• Adjust simulated heart rhythm analysis results.

• Simulate pad-attached or pad-unattached status.

• Trigger chest compression guidance prompts.

• Turn the chest compression metronome on or off.

• Pause, resume, or end a scenario.

A single wireless controller can be used to control multiple ZOLL AED Plus Trainer2 devices.

4. Real CPR Help® Technology Simulation

The ZOLL AED Plus Trainer2 supports the simulation of CPR feedback prompts similar to the Real CPR Help® technology on the AED Plus machine. During practice, the instructor can use the controller to trigger prompts such as:

• Push Harder: Requesting the trainee to compress harder.

• Good Compressions: Acknowledging that the chest compression technique meets requirements.

The device also features a CPR Metronome signal, helping trainees practice according to a guided rhythm.(Note: Feedback prompts are controlled by the instructor within the simulated scenario and are not automated measurements of actual compression depth).

5. Support for Adult and Pediatric Training Pads

The ZOLL AED Plus Trainer2 is compatible with the following training pads:

• CPR-D-padz® Training Electrodes: Training pads for adults.

• Pedi-padz® II Training Electrodes: Training pads for pediatric use.

The pads are used to practice pad placement procedures on training manikins. Training pads and replacement adhesive gel can be purchased separately as needed.

6. Replaceable Training Accessories

The ZOLL AED Plus Trainer2 is designed for use in CPR and AED training programs. Accessories such as training pads, adhesive gel, wireless controllers, and carrying cases can be replaced or added depending on usage needs. The main unit operates on four D cell batteries, while the remote control uses two AA batteries.

Technical Specifications of ZOLL AED Plus Trainer2

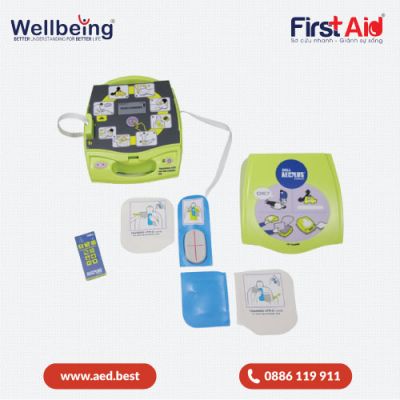

ZOLL AED Plus Trainer2 Package Includes

According to the manufacturer's promotional materials, the standard configuration includes:

1. ZOLL AED Plus Trainer2 device.

2. Wireless remote control.

3. Adult training pads.

4. Batteries for both the device and the controller.

5. User manual document.

Accessories such as pediatric training pads, replacement adhesive gel, and carrying cases may be provided separately. Actual package contents should be cross-checked against the supplier's configuration.

Applications of the ZOLL AED Plus Trainer2

The device is suitable for use in:

• Cardiopulmonary Resuscitation (CPR) and AED training courses.

• First aid training programs at enterprises/companies.

• Emergency skill training activities at schools.

• Medical training facilities and first aid training centers.

• Practice programs for sudden cardiac arrest management on manikins.

The ZOLL AED Plus Trainer2 helps trainees familiarize themselves with the AED operation process, practice CPR, and handle simulated emergency scenarios, contributing to increased confidence when responding to real-life sudden cardiac arrest events.
