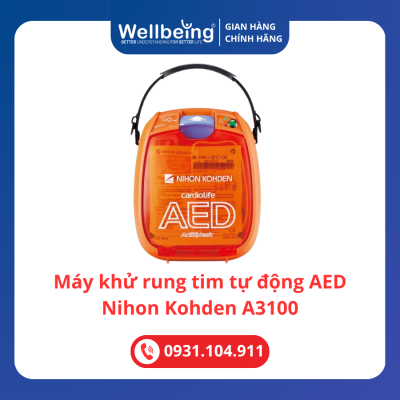

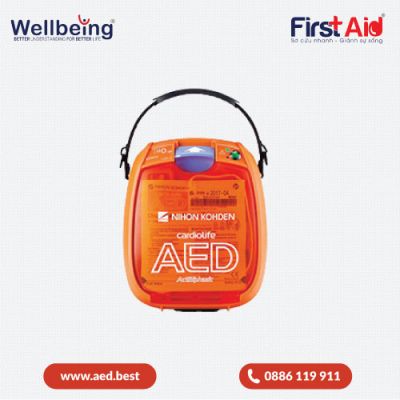

AED Nihon Kohden A3100

The AED NIHON 3100 is a product of Nihon Kohden – a Japanese corporation specializing in the development, manufacturing, distribution, maintenance, and consultation of medical electronic equipment, as well as related systems and products. Nihon Kohden is also the only company in Japan that develops and manufactures biphasic AED defibrillators for community use.

The AED NIHON 3100 is the latest AED model manufactured by the company. In addition to the 3100 series, the company also distributes the 2150 series. To support AED training programs, Nihon Kohden also produces the AED NIHON 3100 Trainer model specifically for practice and education purposes.

Technical Specifications

Device Information:

• Dimensions: 20.6 × 25.2 × 9.7 cm

• Weight: 2.3 kg (including battery weight)

• Power source: SB-310V battery included

• Capacity: Approximately 200 shocks or 7.5 hours of continuous monitoring

• Lifespan (standby mode): 4 years

Operating Environmental Conditions:

• Temperature: Operating from -5˚C to +50˚C

• Humidity: Relative humidity 10%–95%

• Vibration resistance: MIL-STD-810F vibration resistance standard

• Water and dust resistance: IP-55

Defibrillation Performance:

• Defibrillation waveform: ActiBiphasic – advanced biphasic waveform

• Energy levels:

  • Adults: 150–200–200 J

  • Children (under 8 years): 50–70–70 J

• Compression rate: 100 compressions/minute

• Heart rhythm analysis time: Less than 8 seconds, minimum 4.5 seconds

• Time from start-up to shock delivery: Less than 15 seconds (with a new battery)

Outstanding Advantages of the AED Model Available for Rental

1. Simple and easy operation

• Easily activated by opening the device lid

• Only 3 operating steps:

1. Open the lid to turn on the device.

2. Remove the electrode pads from the package and attach them to the victim.

3. Press the shock button when the device recommends delivering a shock.

• For children aged 1–8 years or victims weighing under 25 kg, simply switch the selector on the device to child mode.

2. Electrode pads suitable for both adults and children

• With the AED NIHON 3100, the same electrode pads can be used for all subjects. Users only need to slide a small switch on the device to adjust the appropriate shock energy level, ensuring optimal and effective defibrillation without delay.

3. Optimized heart rhythm analysis time – Reduced emergency response time

• Continuous heart rhythm analysis during CPR

• Pre-charges energy before recommending a shock

• Reduces waiting time for shock delivery

• Minimizes interruptions to CPR

• Helps increase the victim’s chance of survival

• Does not require first aid responders to stop touching the victim during heart rhythm analysis thanks to the advanced ventricular fibrillation analysis mode.

4. Multilingual voice guidance (English – Japanese – Vietnamese)
